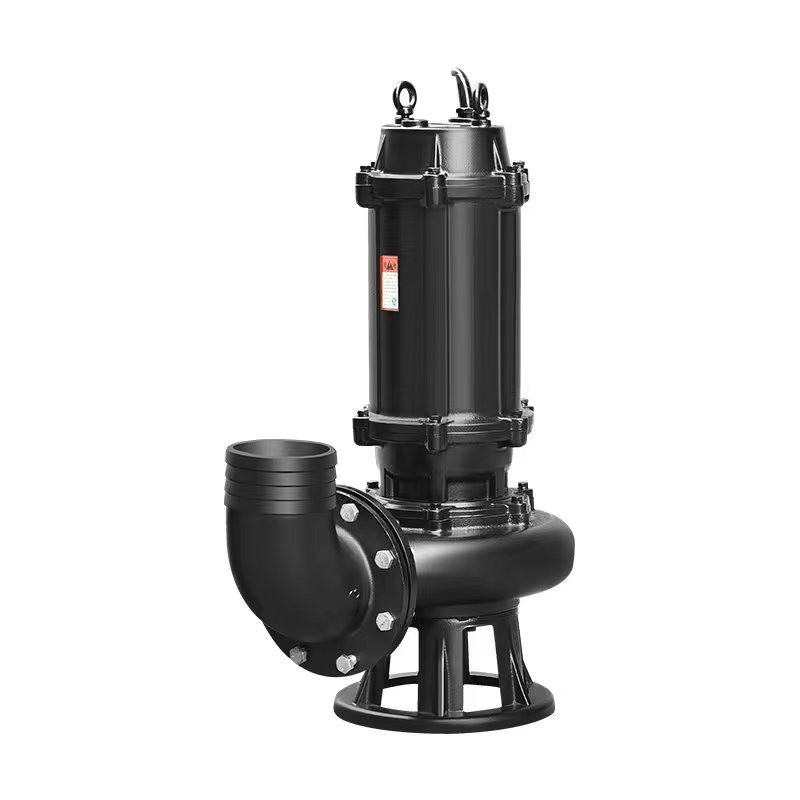

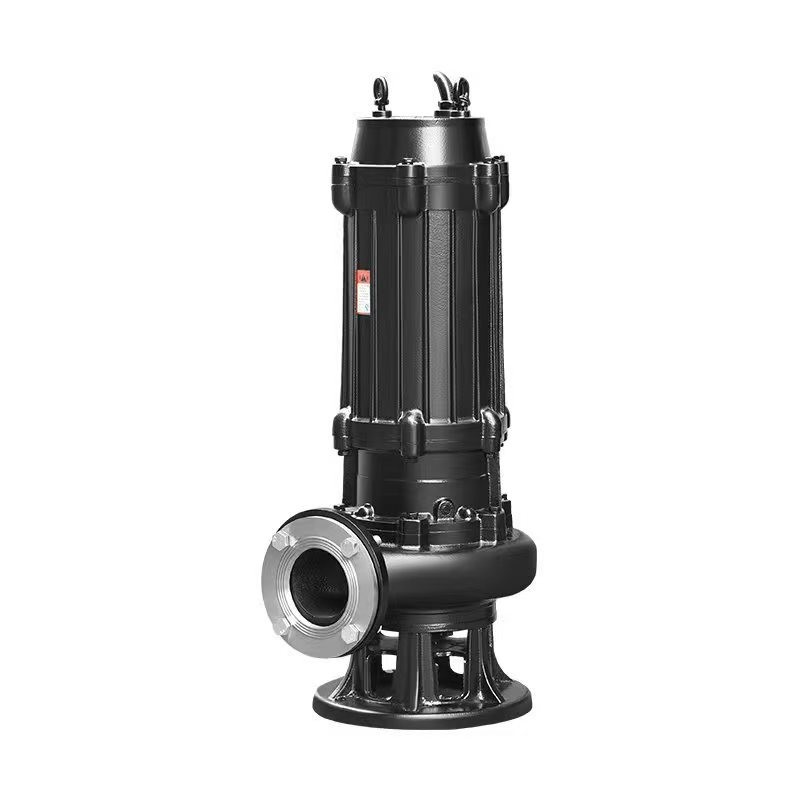

WQ Sewage Submersible Pump

Sewage submersible pumps are a highly essential tool in the cleaning and maintenance of waste systems. These pumps are specifically designed to handle the difficult and sometimes hazardous task of moving sewage waste from one location to another. With their powerful motors, they are able to handle large amounts of sewage with ease.

One of the advantages of sewage pumps is the optional cutting feature. This allows for the breaking down of solids and other debris that may be present in the sewage, making it easier to transport. It also ensures that the pipes and other equipment are not clogged by the larger objects that can sometimes be present in sewage.

Without sewage pumps, the process of cleaning up sewage waste would be difficult if not impossible. With their strong capacity and ability to handle even the toughest and most challenging waste, sewage pumps are an essential tool for maintaining the health and safety of our communities.

In conclusion, the use of sewage pumps is a necessary and important part of the sewage cleaning process. With or without the cutting option, these pumps are able to effectively move large amounts of waste and ensure that our sewage systems are clean and well-maintained. Let us appreciate the hard work of those who operate these pumps, as they play a vital role in keeping our communities safe and healthy.

Application

Suitable for use with dirty water that is not chemically aggressive towards the materials from which the pump is made.

As a result of their reliability and the fact that they are easy to use, and suitable for use in applications such as clearing dirty water, discharging domestic waste water, and for emptying collection traps containing partical up to a maximum of φ 35mm.

Motor

Two-pole induction motor(n=2850 r.p.m)

Insulation Class B

Protection IP68

Continuous service S1

Thermal protector for single phase

Single-phase 220V/50Hz, 60Hz if request

Three-phase 380V/50Hz, 60Hz if request

Operating conditions

5m maximum immersion depth

Liquid temperature up to 35℃

Maximum ambient temperature 40℃

Component Construction

Pump body:Cast iron

Suction filter:Cast iron

Impeller:Cast iron

Motor shaft:AISI304 SS

Mechanical seal:SIC-SIC/Ceramic-Graphite

Cable:8m power cable with plug
