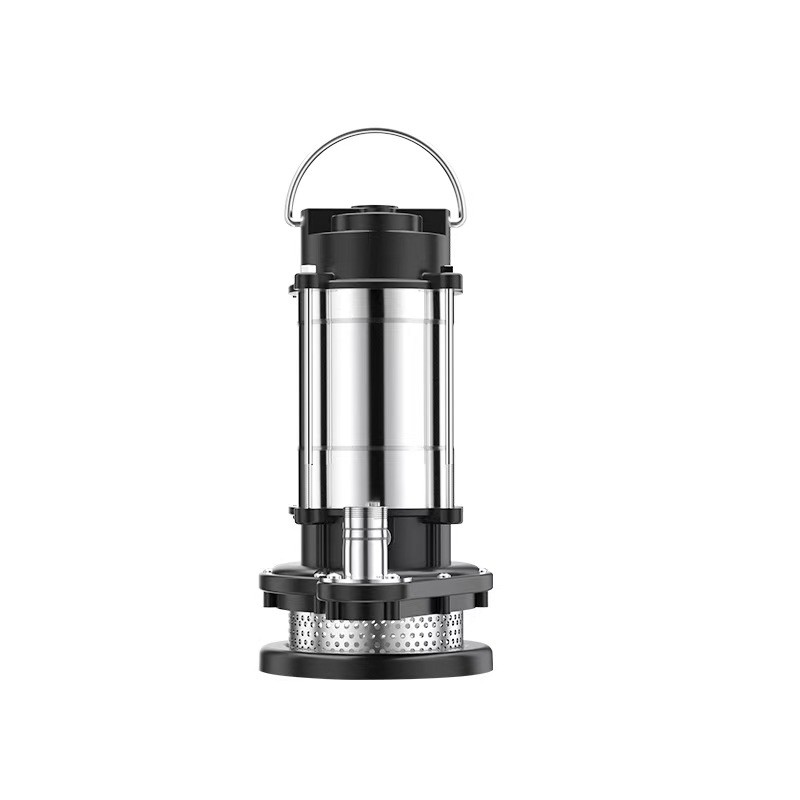

QDX V Submersible pump

Stainless steel submersible pumps are essential tools for industries and households that require the efficient and reliable transport of clean water and non-impurity liquids.These pumps are designed to withstand harsh environments,and their high-quality materials provide a longer service life and higher efficiency.

One of the primary advantages of stainless steel submersible pumps is their ability to work in submerged conditions.This means that they can transport fluids without the need for costly and complex external pumping systems.The pump's motor is sealed inside a waterproof casing,which ensures that the pump can operate even when completely submerged in water or other liquids.

Another advantage of stainless steel submersible pumps is their durability.As they are made from high-quality stainless steel, they are resistant to corrosion and other forms of damage. This means that they can withstand harsh environments and continue to function effectively over a long period of time.

Moreover, stainless steel submersible pumps are highly efficient when compared to other types of pumps.This is because they have the ability to create a strong and steady flow of liquid, even when operating at high pressure.As a result, they can transport fluids without any interruptions or loss of pressure,which is crucial for industries that rely on a consistent supply of clean water.

In conclusion,stainless steel submersible pumps are highly effective tools for the transport of clean water and non-impurity liquids.Their advantages include durability,efficiency,and the ability to operate in submerged conditions,making them ideal for a wide range of industries and households.

Application

Suitable for use in civil and agricultural applications.

The high efficiency and continuous duty capabilities makes these pumps ideal for use in activities such as flood and spray irrigation, gardening, agriculture, drawing water from lakes, rivers and wells, or for any number of different industrial applications where the characteristics of high head and mid flow rates are required.

Motor

Two-pole induction motor(n=2850 r.p.m)

Insulation Class B

Protection IP68

Continuous service S1

Thermal protector for single phase

Single-phase 220V/50Hz, 60Hz if request

Three-phase 380V/50Hz, 60Hz if request

Operating conditions

8m maximum immersion depth

Liquid temperature up to 35℃

Maximum ambient temperature 40℃

Component Construction

Pump body:Cast iron

Suction filter:AISI304 SS

Impeller:PPO

Motor shaft:AISI304 SS

Mechanical seal:SIC-SIC/Ceramic-Graphite + Ceramic-Graphite

Cable:12m power cable with plug
