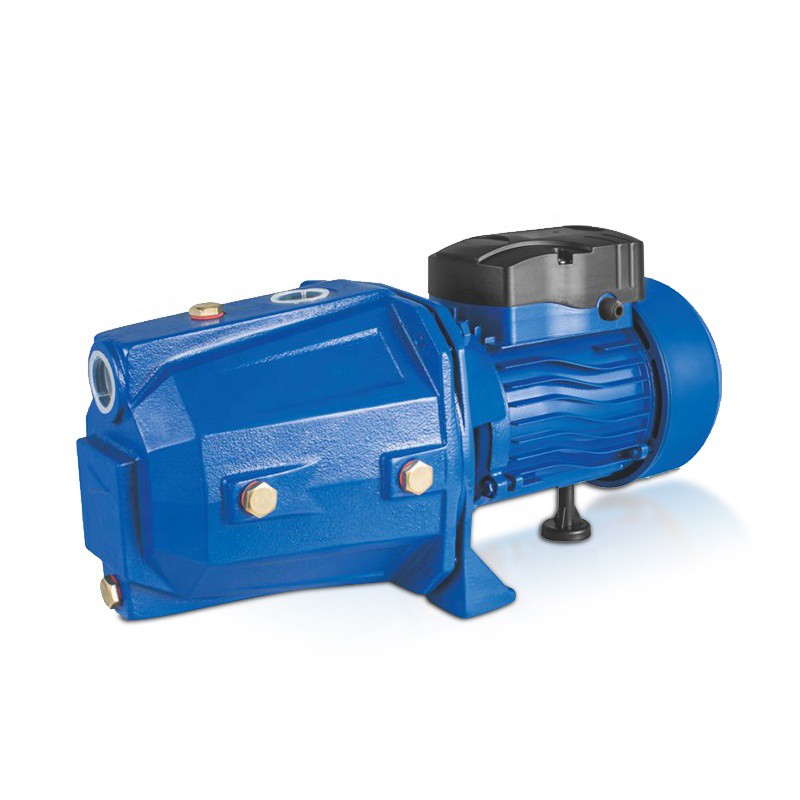

Product Description:

Jest pumps are an excellent choice for anyone looking for a reliable and efficient fluid power pump. One of their main advantages is their high efficiency, which means they use less energy to move fluids compared to other types of pumps.

Another great advantage of jet pumps is their simple structure. They are easy to operate and maintain, and their mechanical components are usually uncomplicated, making them less likely to break down or malfunction.

Jet pumps are also known for their low operating costs, as they require minimal maintenance and do not consume a lot of energy. Their compact design also makes them easy to install and transport, which is a huge plus for those who need a pump that can be moved around easily.

Perhaps the most appealing feature of jet pumps is how silent they are. They can operate without generating any significant noise, which is ideal for those who live or work in noise-sensitive environments.

Overall, jet pumps are an excellent choice for anyone looking for a reliable, efficient, and cost-effective fluid power pump. Their many advantages make them an excellent choice for industrial, agricultural, and residential applications alike.


Application

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

The self-priming jet pumps are designed to pump water even in cases where air is present. As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.

The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Motor

Two-pole induction motor(n=2850 r.p.m)
Insulation Class B
Protection IP44
Continuous service S1
Thermal protector for single phase
Single-phase 220V/50Hz, 60Hz if request
Three-phase 380V/50Hz, 60Hz if request

Operating conditions

Liquid temperature up to 60℃
Ambient temperature up to 40℃
Total suction lift up to 9m

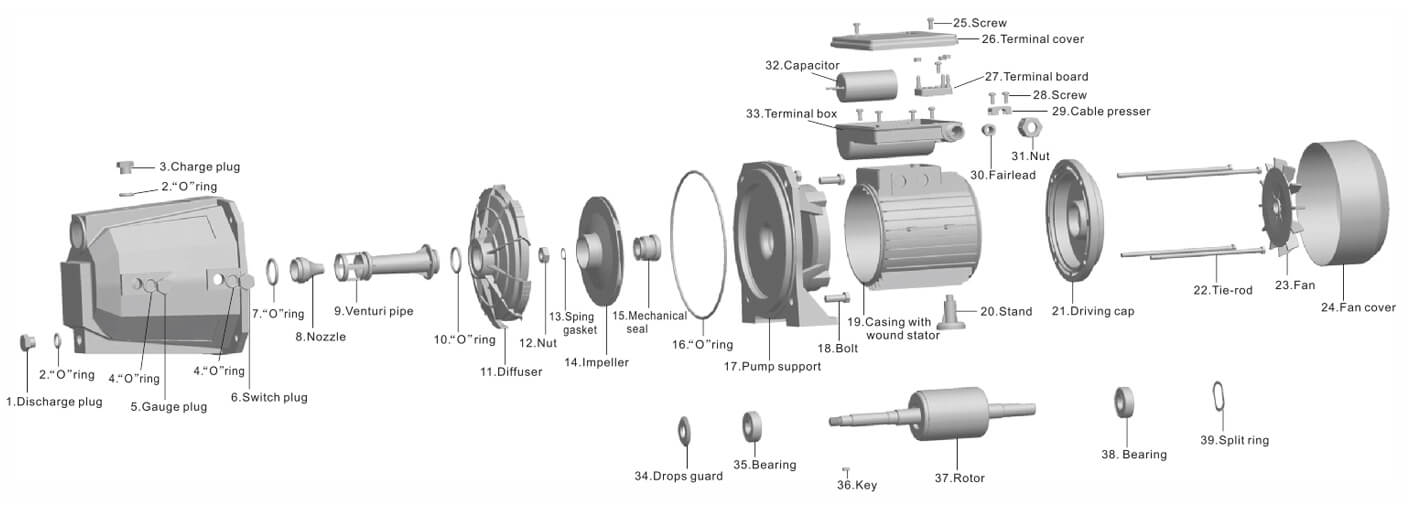

Component Construction

Pump body:Cast iron

Pump support:Cast iron

Motor housing:Aluminum

Impeller:Brass

Diffuser:Noryl

Motor shaft:Carbon steel, AISI304 SS if request

Mechanical seal:SIC/Graphite

JET T.jpgJET ITEM.jpgJET结构图.jpg
