QB

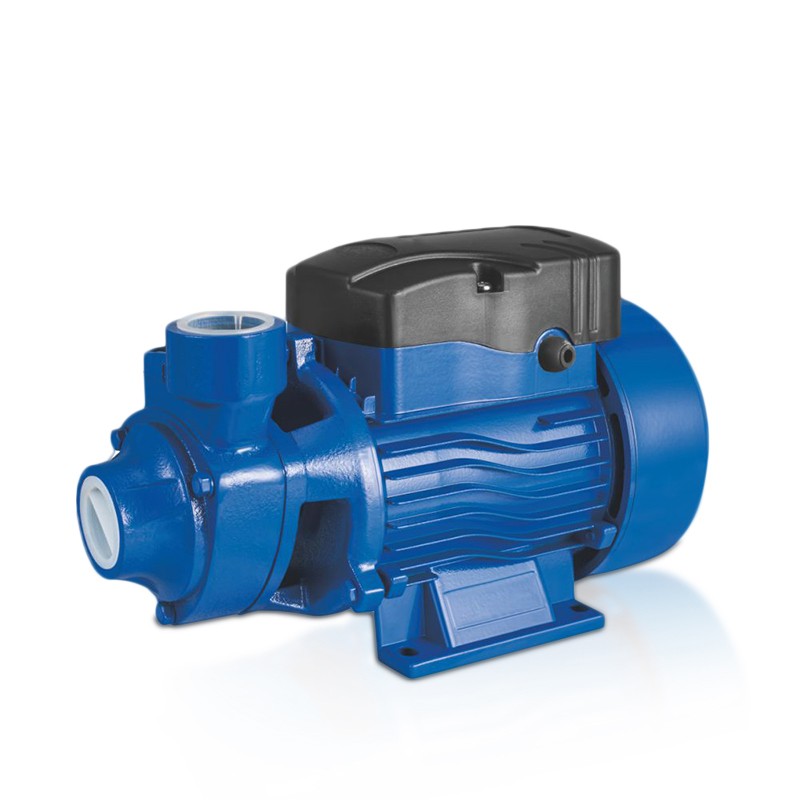

Product Description:

Suitable for use with clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.

They are easy to use and are economical, they are ideal for domestic use and in particular for distributing water in combination with small pressure sets and for the irrigation of gardens and allotments.

The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

The QB series peripheral Pump is a small but powerful piece of equipment that has become incredibly popular due to its ease of use and low noise.    Designed to be used in both homes and kitchens, these pumps have quickly become one of the best-selling products on the market.

With their compact size and lightweight design, QB series peripheral pumps are incredibly easy to use.    They can be installed quickly and without any hassle, making them an ideal choice for those who are looking to improve their home's plumbing system without the need for professional help.

What's more, these pumps are incredibly quiet.    Thanks to their advanced technology and carefully engineered design, they produce very little noise while in operation.    This means they can be used without disturbing others in the household, making them a great choice for those who need to use them during night hours.

Overall, the QB series peripheral pump is an excellent choice for anyone in search of a reliable, easy-to-use, and efficient pump.    Whether you're upgrading your home plumbing system or looking for a reliable pump for your kitchen, this product is sure to meet your needs!


Motor

Two-pole induction motor(n=2850 r.p.m)

Insulation Class B

Protection IP44

Continuous service S1

Thermal protector

Single-phase 220V/50Hz, 60Hz if request


Operating conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 8m

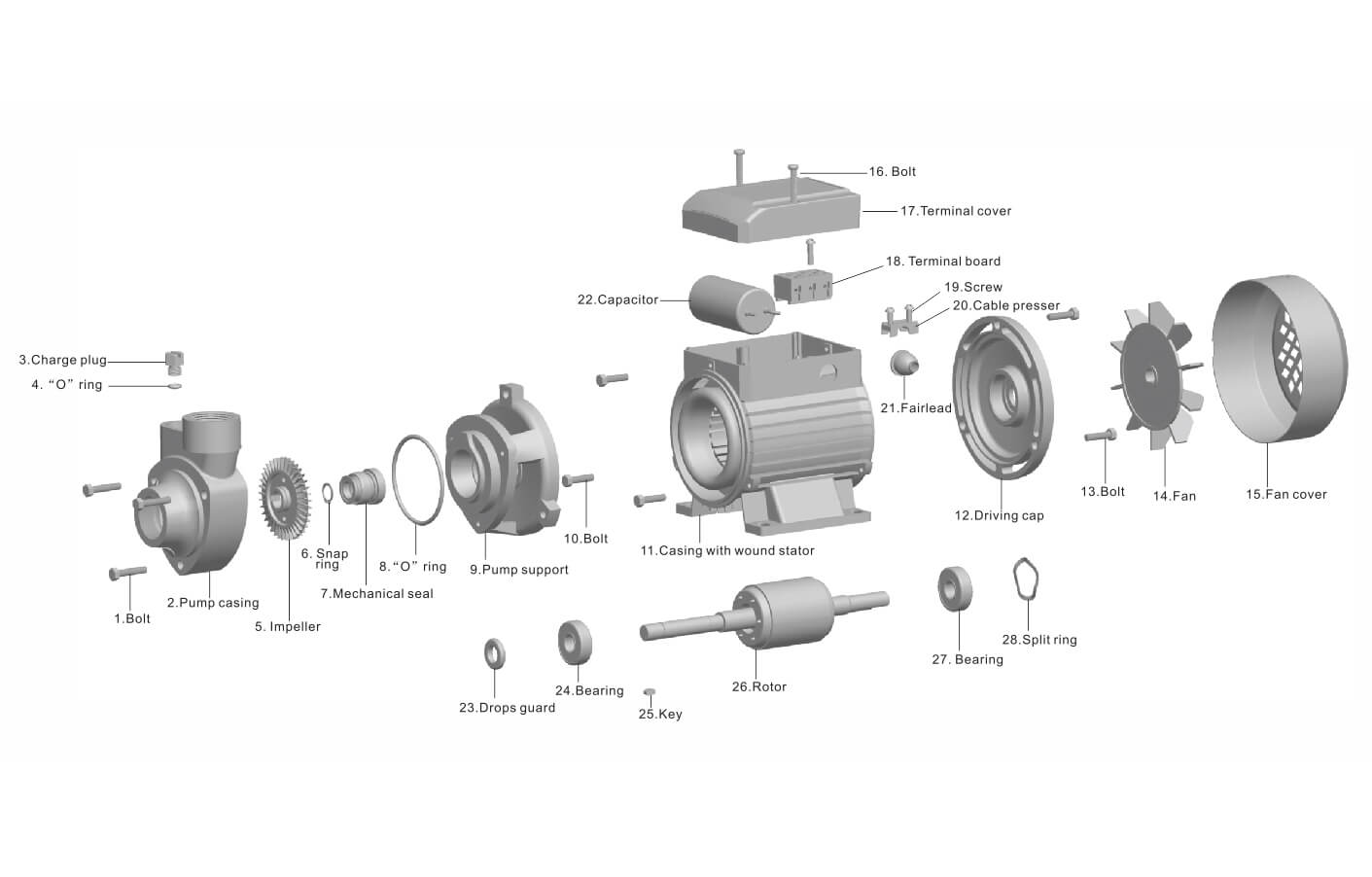

Component Construction

Pump body:Cast iron, with brass/AISI304 SS insert if request

Pump support:Cast iron, with brass/AISI304 SS insert if request

Motor housing:Aluminum

Impeller:Brass

Motor shaft:Carbon steel, AISI304 SS if request

Mechanical seal: Ceramic/Graphite

QB.jpgQB ITEM.jpg
