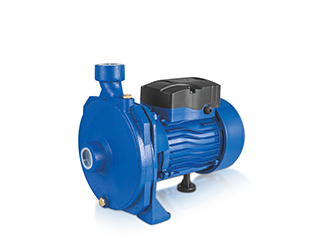

CPM Centrifugal Pump

Centrifugal pumps are an efficient and reliable pumping solution. They offer a continuous and uniform flow, making them ideal for a variety of applications. With a large range and easy adjustability, these pumps can fulfill many different needs.

One of the greatest advantages of centrifugal pumps is their high speed. This enables them to move large quantities of fluid quickly and efficiently. Despite their impressive performance capabilities, these pumps have a simple structure and are incredibly stable. As a result, they are easy to operate and maintain.

Another benefit of centrifugal pumps is that they are not sensitive to impurities. This means that they can handle fluids that contain solid particles or other contaminants without clogging or causing damage. Additionally, they have fewer wearing parts than other types of pumps, which means that they require less maintenance over time.

Overall, centrifugal pumps are an excellent choice for anyone who needs to move fluids quickly and reliably. They are highly versatile and can be used in a wide range of applications. Whether you are pumping water, oil, or chemicals, a centrifugal pump can help you get the job done efficiently and effectively.

Application

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

As a result of their reliability and the fact that they are easy to use, these pumps are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure sets, for transferring liquids and for the irrigation of gardens and allotments. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Motor

Two-pole induction motor(n=2850 r.p.m)

Insulation Class B

Protection IP44

Continuous service S1

Thermal protector for single phase

Single-phase 220V/50Hz, 60Hz if request

Three-phase 380V/50Hz, 60Hz if request

Operating conditions

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 8m

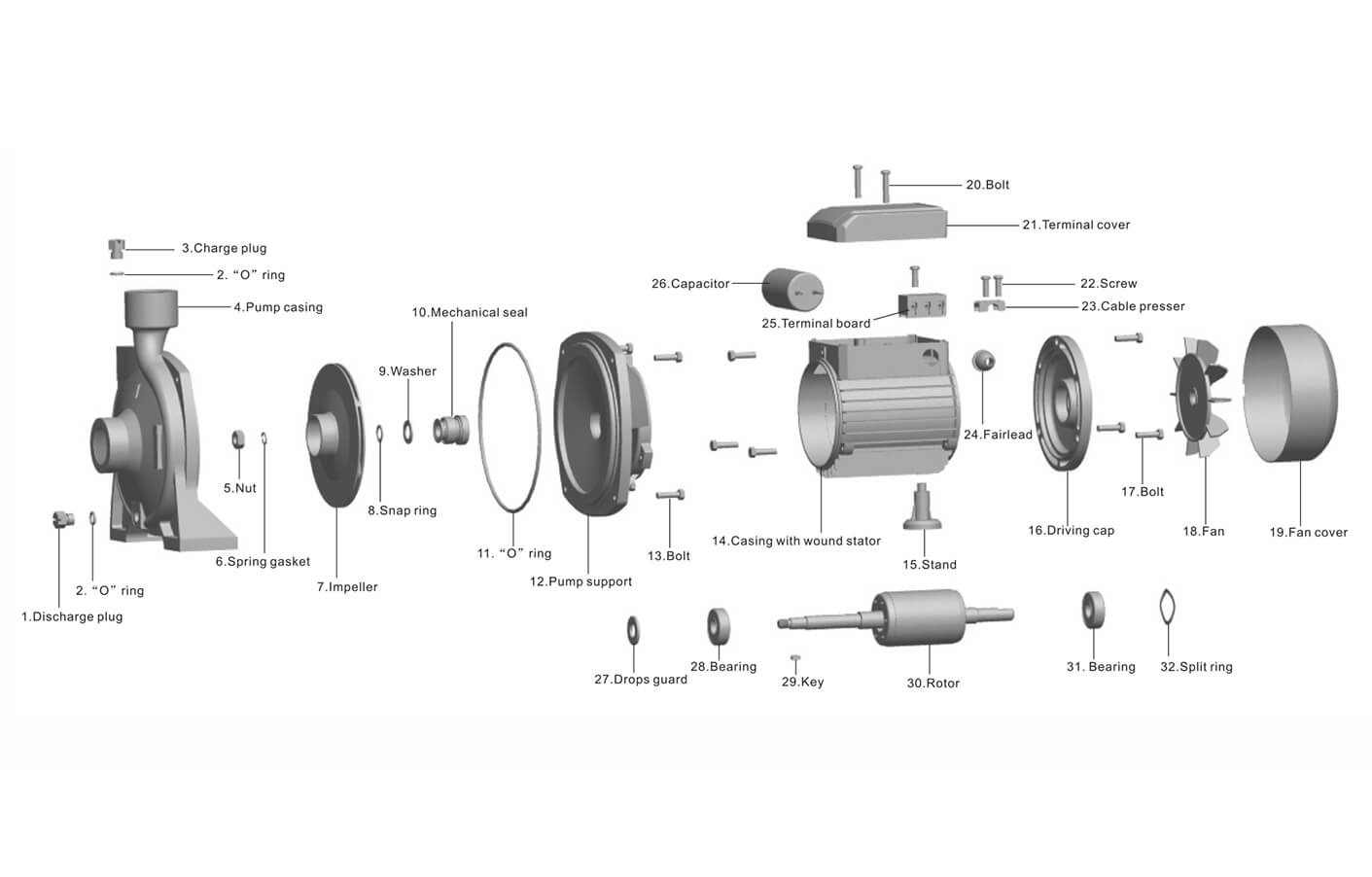

Component Construction

Pump body:Cast iron, with brass/AISI304 SS insert if request

Pump support:Cast iron, with brass/AISI304 SS insert if request

Motor housing:Aluminum

Impeller:Brass

Motor shaft:Carbon steel, AISI304 SS if request

Mechanical seal:Ceramic/Graphite
